Gym Check in turnstile with qr and barcode reader Swing Entrance Turnstile For Stadium Access Control
Product Description
1. This turnstile with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.
2. Fail-safe design ensures that the swing flaps retract back into the housing to allow unblocked access in the event of a power failure.
3. Both RFID card reader,face recognition and QR code scanner could be integrated for better user experiences.
4. Higher flow rate and better anti-tailgate IR sensors functions.
3. Indicator and LED light can achieve real time displaying which improve the passing rate and convenient maintain.
4. Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
5. Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm, etc.
6. Bi-directional or single way optional.
Technology Parameters
| 1 | Cabinet dimension | 1400 (L) x 120 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Feature & Function
◊ designed to the highest standards, ahead of industry trends:
◊ using unique sensors which detect visitors approaching
◊ pulsing light strips to guide the user
◊ intuitive and proven symbols to make it user friendly
◊ ergonomic design for customer comfort
◊ customization possibilities in fitting with interior design
◊ premium quality materials
◊ Single lane or multiple lane set-up
◊ Gate auto-open when power is off to meet the fire protection requirements.

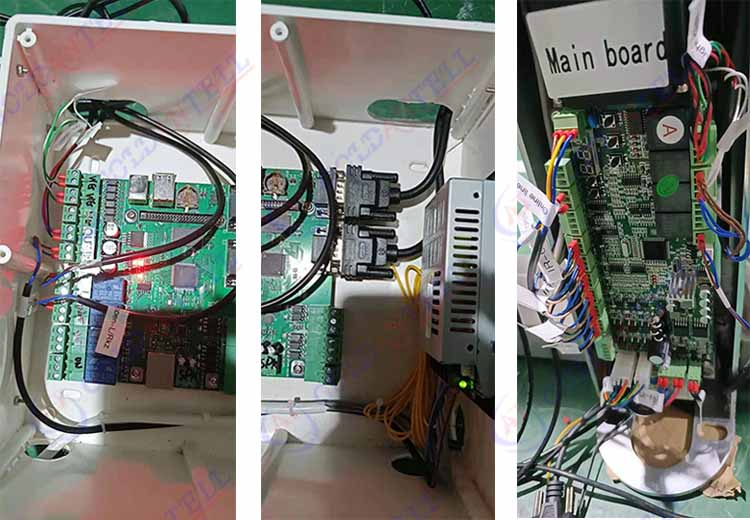

Inner Component
Ticket control panel (specially supplied for QR code control system)
| ♦ Ticket control panel | ♦ Ticket control panel | ♦ Main board of turnstile |

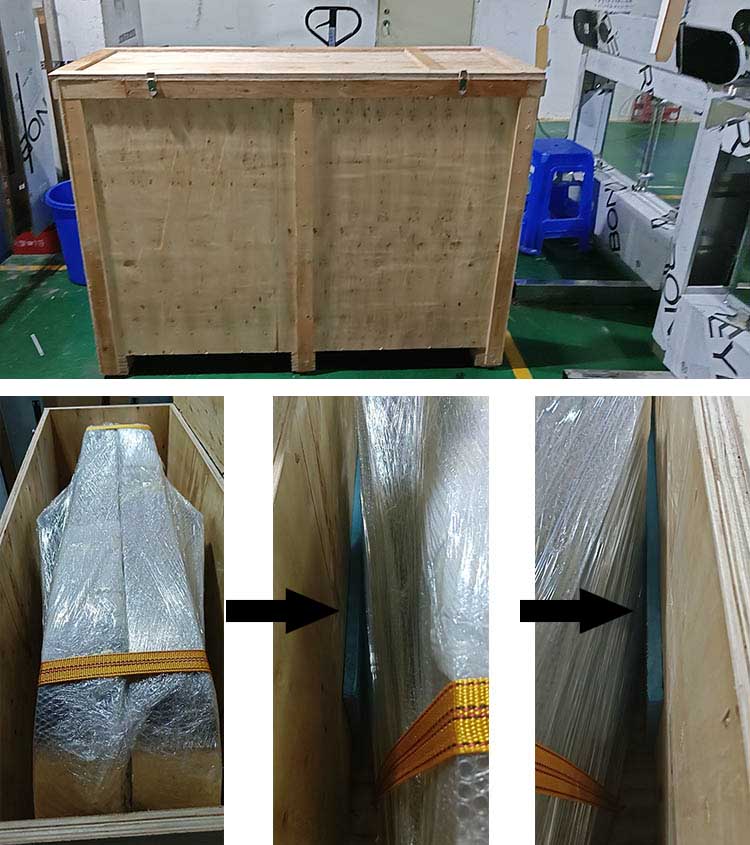

Packaging Details
◊ Inner package - bubble bags.
◊ Outer package -a whole crate package is advised; or wooden case package.
Why Choose Goldantell?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
Application Location
♦ Bank
♦ Fitness Gym
♦ Factory
♦ Hotel
♦ Movie theaters
♦ Office buildings
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How does your factory control the quality?
Vivian: Quality control from the beginning to the ending.
3. Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
4. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
5. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
6. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
7. What is your MOQ?
Vivian: Any quantity is acceptable.
