Brand Name : Goldantell
Model Number : GAT-DT330
Certification : CE certificate
Place of Origin : Guangdong,China
MOQ : 1pc
Price : negotiation
Payment Terms : T/T ,western Union,LC,Paypal
Supply Ability : 2,000pcs per month
Delivery Time : 7 working days after received your payment
Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing
Certificate : CE
Usage : Office,Hotel,Library,Metro Station,ect.
Working environment : Indoor / Outdoor ( Shelter),indoor
Direction : one-way,bi-direction adjustable
Material : 304 Stainless Steel, (or custom 316)
Dimension : L1500xW280xH1000mm
Transit speed : 25~30 persons / min
Power supply : 110~240 V(AC)
Passage width : 600mm
Warranty : 12 Months
Access Control Scanning QR code Barrier Gate Full Automatic LED Tripod Barrier Gate

 Quick Description Of Full Automatic LED Tripod Barrier Gate
 1. Tripod turnstile gate are compact and cost-effective entrance solutions.
 2. The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
 3. Tripod turnstile gate is ideal for indoor and outdoor settings.
 4. In case of emergency, the tripod turnstile gate will drop down when power off.
 5. Classification: 1) full automatic 2) semi-automatic 3) manual, the semi-automatic is the most widely used.
| Size | 1500mm (L) * 280mm (W) * 1000mm (H) |
| Working voltage | AC220±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: | When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃~70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: | standard RS485 interface, distance ≤1200m |
| Housing material | domestic standard 304 # stainless steel |
| Input interface: | +12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
 ♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
 ♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.

-Low noise, no mechanical impact
 -Single directional or Bi-directional
 -High operation with quick response
 -Excellent design, with high quality
 -Robust, rigid , anti-rust and durable
 -Smoothly working system
 -Self-test function
Added function
 -Counting function available (counter)
 -Information display option (LCD display screen)
 -Audible sound prompt
 -Invalid entering alarm
 -Auto-lift-arm function (full automatically type)

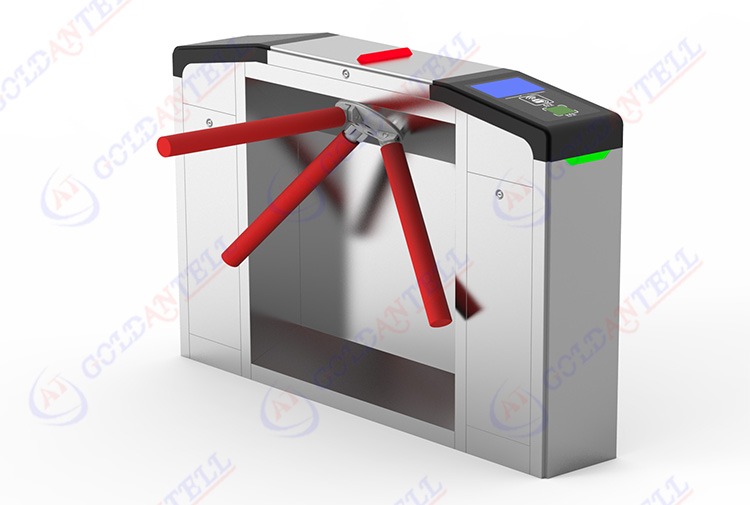

 Photo Of Full Automatic LED Tripod Barrier Gate


|   |
