Supermarket One Way Manual Swing Pedestrian Turnstile Gate 90cm Long Channel

Brand Name : Goldantell

Model Number : GAT-610 series

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal

Supply Ability : 1,000pcs per month

Delivery Time : 2-5 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Working environment : Indoor / Outdoor ( Shelter),indoor and outdoor with shed

IP : 54

Type : NO\NC\COM,Fully Automatic

Communication : RS485 TCP/IP

Dimension : pole diameter 168mm, height 1050mm

Power supply : AC220V/110V

Panel material : acrylic, glass or steel

Pass speed : 30 Persons/min

Contact Now

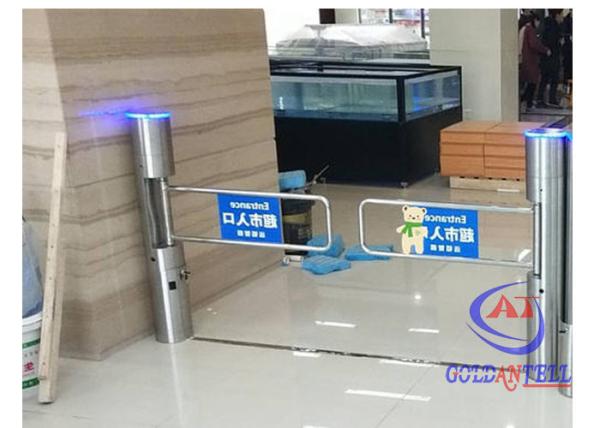

Supermarket One Way Manual Swing Pedestrian Turnstile Gate 90cm Long Channel

Description
Product Name: Cheap price super market one way access manual swing turnstile 90cm long channel with the push-button operation.
Swing barrier has the smallest installation footprint while offering the widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller, or user with big luggage to pass through with comfort.
1) Protection Grade: IP54.
2) Operating Temperature: -15°C-60°C.
3) Working environment: indoor and outdoor (added the rain-shed).
4) Ideal for low traffic and light duty site that requires more affordable solution.
5) The complete stainless steel construction is suited for interior or exterior application.
6) Infrared Sensors: optional, can add IR sensors for supermarket/store/shop entrance or exit.
7) Color: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like.
8) Addition: time attendance access control system such as RFID card, fingerprint, face recognition, coin/token, etc.

Specification

Cabinet dimension
pillar diameter 168mm,
height 1050mm
Running speed
30~40 persons/min
Cabinet material

304 stainless steel
Power supply
AC110~220volts
Passing width
60, 90cm, or more,
can be custom-made
Operating
temperature
-15°C--75°C
Passing Direction
single in/out or
Bidirectional
Communication
Connection
standard RS 485


Function& features
1. Swing barrier is with 485 interface for long-distance control concern.
2. Anti-rush function: If there is no open single, the arm will be holding tightly.
3. Swing barrier can count how many passengers have passed and will show it in the LED display.
4. Lighting Led on the top cover is optional.
5. Bi-directional passing or single-way passing.
6. Swing barrier can control the population inside the control of software.

Project Application

  • Supermarket, store.
  • Bus Station
  • Office buildings
  • Restaurant

Supermarket One Way Manual Swing Pedestrian Turnstile Gate 90cm Long Channel

Options & Custom service:
1. The dimension of glass panels could be custom-made.
2. can add visible color LED lighting for glass panels, like green, blue, red, etc.
3. The material of swing panels can be steel / acrylic / tempered glass. So you can charge our standard swing panels if has a special requirement.
FAQ

1. Can your machines be used outside?
Vivian: With waterproof function, could be used outside
2. What is the warranty for the machine?
Vivian: Within 1 year, if any quality problems, we will offer the accessories
3.When will you make the delivery?
Vivian: Regular products:(3-5 days).
4.How does your factory control the quality?
Vivian: Quality controlling from the beginning to the ending. And normally provide the testing video and detailed product photos for each order to let customer confirm before shipment.
5.What is your MOQ?
Vivian: Any quantity is acceptable.
6.payment term?
Vivian: 50% by T/T, 50% by T/T before delivery.
7. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.

Access control system
1. multiple access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
