Half Height Bidirectional Access Control stadium turnstile gate turnstile temperature control
Product Descriptions
◊ LED indicator light: green and red indicate the passing information.
◊ Integrated with facial recognition thermal system, it is finely processed with complete functions and high security level, suitable for high-level neighborhoods, commercial building,and so on.
◊ Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
◊ Ensure rapid, efficient and safe access control.
◊ DC Brushless Motor, Maintenance Free.
◊ The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
Functions & features
>>Standard features
1. Support serial port, Wigan output, output content support configuration;
2. Supports offline LAN equipment deployment and online HTTP transmission cloud deployment;
3. All-black environment ir face detection after complementary recognition;
4. night complementary light in support of photosensitive sensing;
5. Support external QR code scanner, ID card / IC card reader;
6. Support screen display content configuration, custom company name;
7. Support identification distance configuration.
8. Support interface docking, support customization;
Specification
| Size of housing: | 1400mm (L) * 120mm (W) * 1000mm (H) |
| Pass through width | widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: | standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
| Time to work after power on: | 3 seconds |
| Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: | ≤90% coagulation free |
| Housing material: | domestic standard 304 # stainless steel |
| Working voltage: | AC100-240V, 50±10%HZ |
Onsite Application
indoor office buildings, school, gym or fitness center, hotel, hospital, bus station, government lobby entrance or exit, etc.
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
4. What is your MOQ?
Vivian: 1 pc.
Why Choose Goldantell?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
Trade Terms
1. This offer is valid with 30 days.
2. Delivery time: Within 7 days after receive the payment
3. Item of payment: T/T ,LC,Western Union ,Escrow ,Paypal total payment before delivery
4. Carton box+wooden case/crate
Delivery Details
1. When ship by sea,it normally takes 15-60 days depend on different countries.
2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door,it normally takes 3~ 5 days to arrive;
3. We can also help you ship by air cargo ,it takes about 2-7 days to arrive ; No matter what delivery way ,depending on your actual requirements.
Product Tags:
|
|

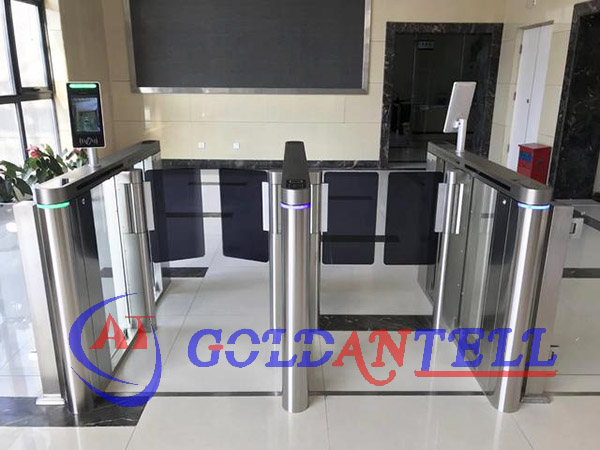

Half Height Bi Directional Security Turnstile Gate With Card Reader Images
|
