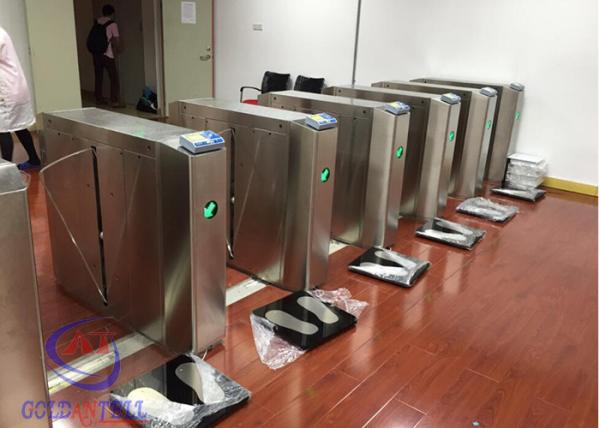

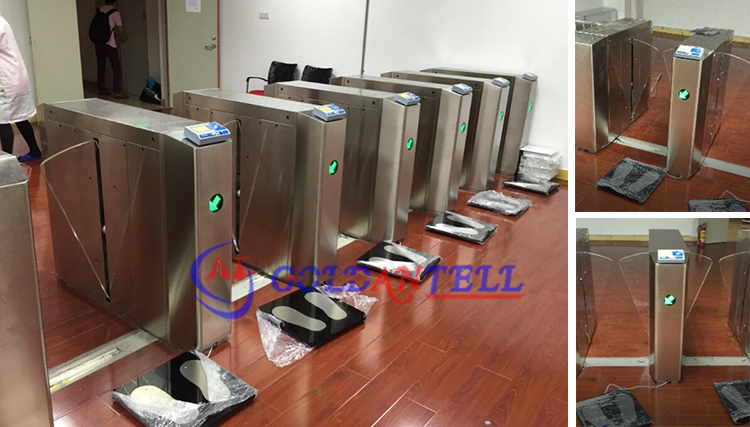

Intelligent Waist Height ESD Turnstile Competitive Price Automatic Barrier Gate
Product Introduction
1) Special stretch wing design, save closing time, improve the passage speed, prevent trailing , increase the security level.
2) Especially suitable for ticketing channel, to avoid fare evasion behaviors.
3) Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.
4) support ESD tester system and cards access control system.
The technical parameters of our ESD turnstile
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating temperature | -15°C--75°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Arm length | 60~90cm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304,thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Feature of our ESD turnstile

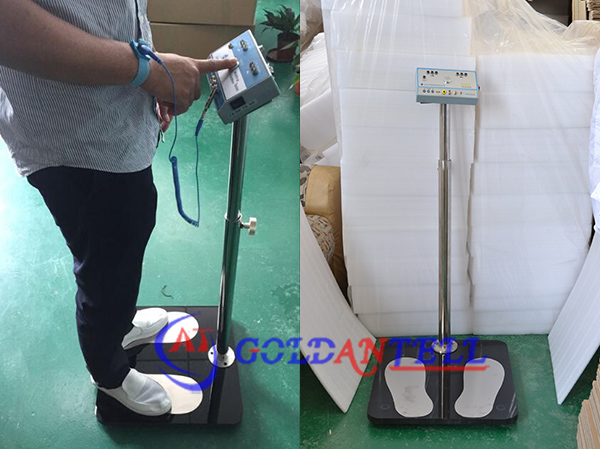

1. the function of LCD display. It can show resistance range such as footware is 0.75MΩ-35.00MΩ and wrist band is 0.75MΩ-9.999M Ω), LO limited value is 0.75MΩ and HI limited value is that footware is over 35.00MΩ and wrists strap is over 9.999MΩ. And it can warn and auto-transfer capacity .If test result by three test paths are in the test range, then wall mounted equipment will give you a voice announce, and output door opening signal to control tripod turnstile, air shower and other electronic doors, etc.
2. Support the Employee mode and guest mode. Employee mode need to use EM card and it can show Name, Card No.,Date&Time. It has four ESD modes as below:
A. Door opens after swiping EM card and wrist strap and footware test passed;
B. Door opens after swiping EM card and footware test passed
C. Door opens after swiping EM card and wrist test passed
D. Door opens directly after pressing buttons No need swiping EM card in guest mode. Door just opens after wrist and footware test passed
3. This tester is a triple play tester that combines checking attendance,access control and ESD testing.
Latest Application Projects
-School
-Airport
-water park with ticket system
-Gym & club
-shopping mall with rfid or qr code system
-office buildings / VIP lane
-bus station
-toilet entry with coin collecter
