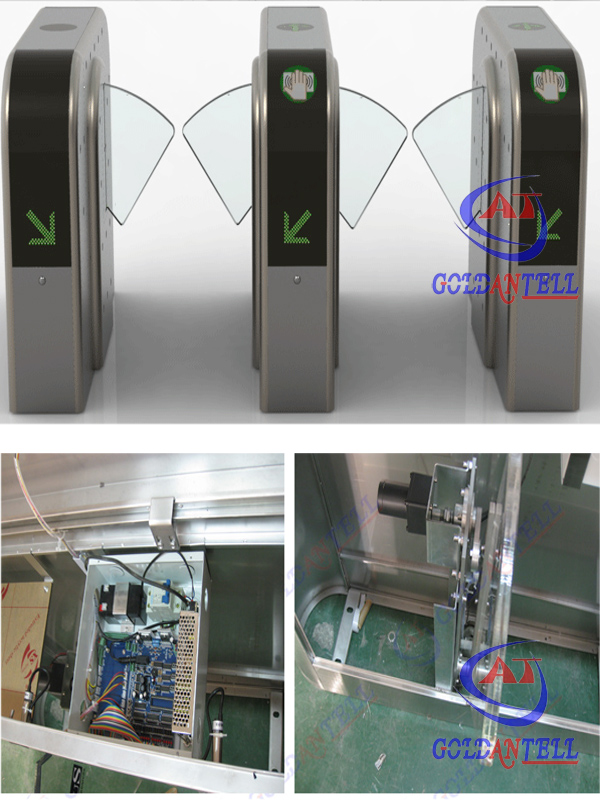

DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments

Name: DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments
Brand: Goldantell
Price: 1 USD

Brand Name : Goldantell

Model Number : GAT-224

Certification : CE/ROHS/FCC/SGS/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T ,western Union,LC,Paypal, L/C

Supply Ability : 2,000pcs per month

Delivery Time : 7 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Product Name : DC24V retractable flap barrier gate wirh card reader identification equipments

Motor : DC24V solenoid valve

Housing material : domestic standard 304# stainless steel

Compatible : RFID Reader&Fingerprint Reader ,Coin acess,QR code reader,Bar code System,ESD Tester Access Control, remote button

Size : 1200*280*980mm

Time of opening : 0.6 second

Work environment : Indoor and outdoor (shelter)

Passage width : 600mm

Contact Now

DC24V retractable Controlled Access Turnstiles wirh card reader identification equipments

Flap Barrier Gate Specifications:

Item	GAT-224-1( single motor ) GAT-224-2( double motors )
Working voltage:	AC220±10%V 50±10%HZ
Time of opening:	0.6 second
Passage width:	≤600mm
Pass speed:	40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down:	10 seconds
Direction:	single or bi-directional (optional)
Input interface:	RFID Reader&Fingerprint Reader ,Coin acess,QR code reader, Bar code System,ESD Tester Access Control, remote button
Communication interface	RS485/232
Support	operating video& Instruction will be sent to clients to help them better use the machines
Type	Retractable Flap Turnstile

function:

1. Anti-illegal in, anti-intrusion, auto close for reverse direction.
2. Anti-collision, gate closes when no valid signal is given.
3. Gates can be synchronous
4. auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
5. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors)
6. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
7. One way or two way control
8. Unit can be controlled and administered by remote control

9. working method can be set by the buttons on the main panel
10. This model is double wing flap gate, low noise, smaller casing, save space

Extensible functions:

1. LED counter display
2. Casing and gate size can be lengthened
3.Lgic judgment by photocells (7pair or 9 pairs)
4.Speech reminder
5. Light, sound alarm

System Integration:

Integrate with access control system required by customers, and built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.

control system:

access control system	access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
charge management system	counter, coin- operation.
support special function	ESD tester system and function

application:

Terminal,Tourism Sports,Exhibition, Hotel,Factory,Bank,Prison,Hospital,School, Subway Station,Bus Station,Airports,Hoverport, Library,Theater,Canteen,Swimming Hall,Fitness Gym, Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Toll Management
